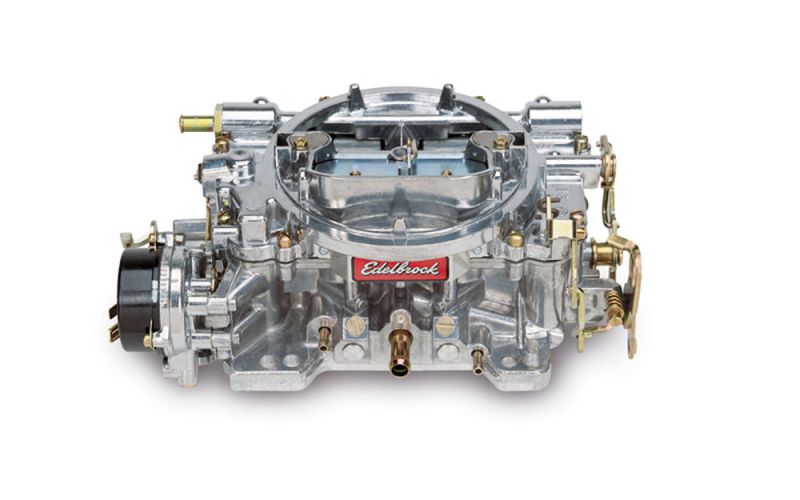

1403 | EDELBROCK CARBURATEUR 500CFM 4-BBL ELECTRISCHE CHOKE NON-EGR

760,95 €
Nicht lieferbar
SKU
1403

1403 | EDELBROCK CARBURATEUR

Size: 500CFM 4-BBL

Optie: ELECTRISCHE CHOKE NON-EGR

Geschikt voor een standaard 5,7L (350cid) en alles wat kleiner is.

SPECS

Availability Available
Application Universal
UPC 00085347014033
Condition New
Series Performer
Metering Rod Size .065 x .047 in
Gasket Or Seal Included Yes
Barrel Quantity 4 Barrel
Flange Type Square
Secondary Jet Diameter 0.095
Main Venturi Diameter 1.19
Body Height 3.25
Bore Diameter Primary Bore 1.44; Secondary Bore 1.69
Spring Force 5" Hg (Orange)
Availability Note Available to Order
Warranty 3 Months
Emissions Code

Hazardous Materials Warning WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Recommended cubic inch displacement for small block dual quad applications is 302-400+ c.i.d.; Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d.; Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels
Body Color Satin Finish
Choke Type Electric
Finish Satin
Marine Approved No
Material Aluminum
CFM Rating 500 cfm
Primary Jet Diameter 0.086
Weitere Informationen
Fit in Mailbox Look to weight
